Marionette's Trailer - Updated August 1, 2022

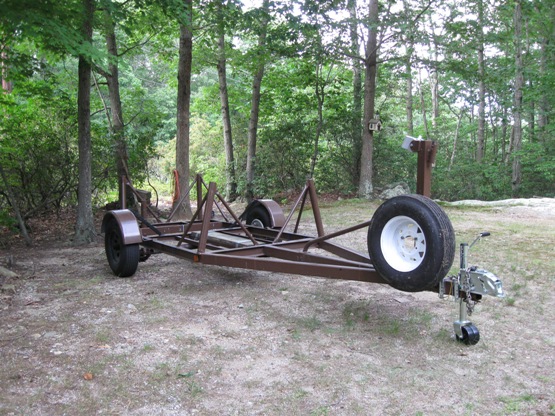

This is Marionette's trailer

Marionette's Trailer, October 2008

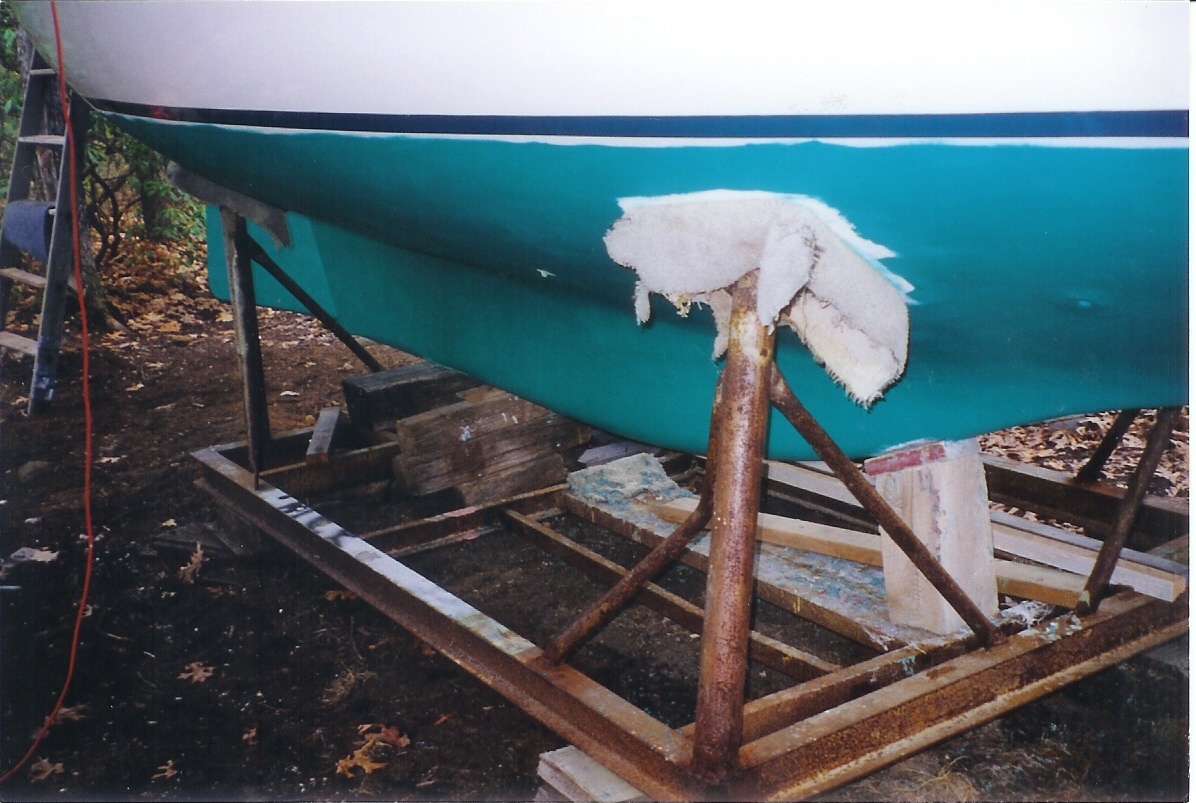

The trailer started life in 1996 as the steel cradle seen here at left. It was very well built with little sign of serious rusting. After sandblasting her, we welded a short tongue to the frame and bought, through the Northern Tool and Equipment catalogue, a single axle, surge brakes, springs, fenders, hitch actuated hydraulic surge brakes, heavy duty tires, a spare tire, a light package and an 800lb capacity tongue jack, the one in the picture immediately below, It was marginal. In 2008 we bought a new, double wheel 1500 lb jack - much better.

Click here for a larger image

The tricky part of building the trailer was getting the location of the axle right so we could achieve the right balance and tongue weight. This involved some assistance from the S&S office - fore and aft center of balance (see sketch below). Some real nice, expensive hitches have load cells that read out the tongue weight on the truck hitch. This does not fit within the typical Dolphin owners accessory budget. The assembly of all the parts is fun as long as you have a mechanic friend who knows about things like hydraulic surge brakes.

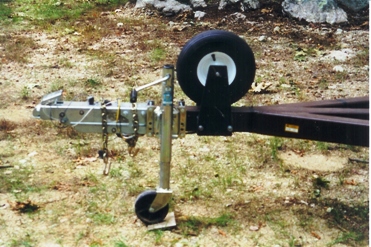

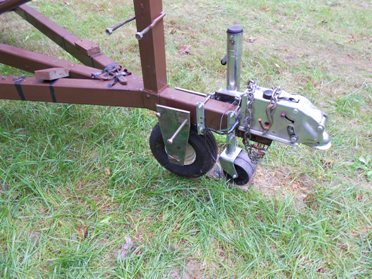

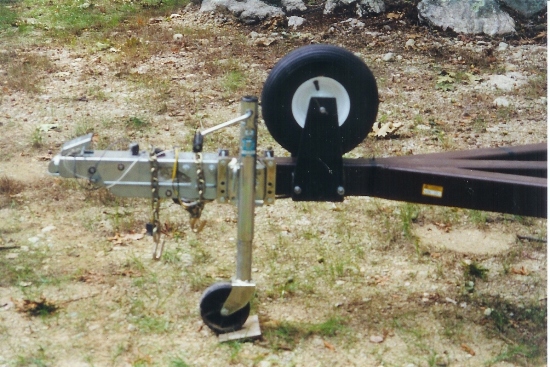

We have a 12’ extension and a removable tongue wheel (click here for a larger image of picture at left) that makes launching easier. The wheel stores on top of the tongue. If I recall correctly, that tongue wheel was a wheel barrow wheel I picked up at Home Depot. After positioning on the ramp, the trailer wheels are blocked, the trailer disconnected, the tongue wheel moved to the down position and the jack swung up. The extension is connected to the hitch on the trailer and on the truck. With this one axle system you have to be sure you have your weight distribution right, not only for towing, but when using an extension, especially on a steep ramp. A 'light' tongue is not good - I think 500# minimum and 800# maximum is the right range.

Another problem with a light tongue - with the extension rigged - backing down a nice gentle, beautifully paved ramp is no problem. With the extension, if the backing down process is jerky or stops abruptly (pot holes, bumps, etc.) the tongue "joint" could lift because the boat wants to keep going while the trailer wants to stop.. Not a big problem when the boat's stern is nearly in the water, but a big problem if on the steeper, dry part of the ramp, or in shallow water. This owner has, many times, put his 200 lbs (update 175#s!!) to good use as insurance by standing on the tongue over the extension wheel for the ride to deeper water. (October 6, 2011 - see more on this subject below) Maybe this is why people invest in double axle trailers? Another consideration is that a short tongue means no really tight turns. More on why a short tongue is a good idea later.

The trailer has a removable 'nose' post to help align the boat when she is being pulled out. This can be a bit tricky without a winch to hold her on nose as the boat will settle in whatever attitude she has when she no longer floats - this is a variable event by poppet depending on how level and even the ground under the water is. Putting a ring in Marionette's bow is not an option! You can't use a line to the bow chock because while it pulls the bow down into the nose post it also pulls the stern up - and when you haul out the stern settles back pulling the the nose back.

Sometimes we use a halter around the whole boat so there is no down pressure on the bow. It really all depends on the attitude of the trailer and how gradual the grade is. Anyway, we always manage to get it done and get her home, sometimes with a pad that we slip between the nose post and the bow. In any event, the nose post is not 'structural', only a sturdy guide.

The trailer passed the Connecticut Motor Vehicle Dept. inspection and has a 6000lb rating. She weighs 1060 lbs which means that she is rated to carry a 4940 lb load. What does a Dolphin weigh? I thought you would never ask (click here) Total cost was less than $2000 plus lots of mental stimulation vs the Triad no brainer but expensive $3300, at that time (1997), now maybe close to $6000. The real savings? Marionette's trailer can fit in a barn that is only 28’ deep. The overall length of this trailer with boat is 26’. A Triad with boat would be about 8’ longer, at least several thousand in additional, larger barn, construction costs on land that I really could not spare.

The trailer in the barn. That 2 x 4 in the foreground was an early temporary brace for the vertical nose support you see in the prior photo. The 2x4 was replaced by a removable 1 1/2" OD pipe with U flanges welded to both sides and bolted to the tongue. Click here for a larger image of the picture at left.

In the beginning I had built a pair of wood guides for the keel thinking they would help guide the boat on to the trailer. And I bolted a couple of aluminum tubes to the fenders into which thin flag poles could be inserted. Neither of these 'accessories' turned out to be necessary.

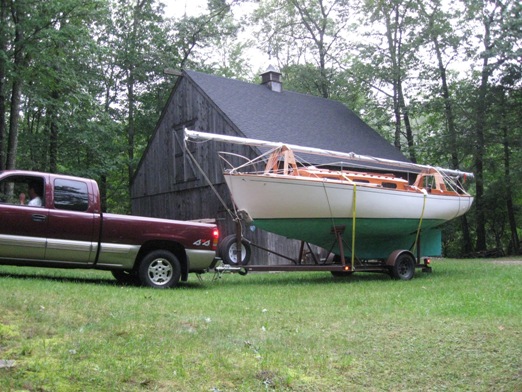

Leaving home - the normal trip is 4-5 miles to the launch ramp

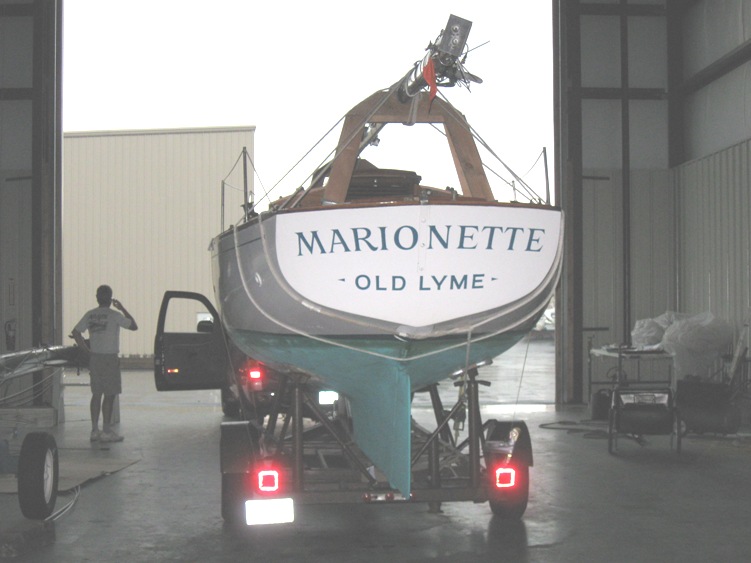

Marionette at Boothbay Region Boat Yard, Southport Island - pouring rain outside

On September 9, 2008 this trailer made its first ever long haul - 250/275 miles from Southport Is/Boothbay, Maine back to Old Lyme, CT. This trip was approached with some anxiety. She came through with flying colors. I learned one lesson about trailering a heavy load at 65mph on the highway - do not look at the trailer - its scary. Kind of like an out of control dinghy being towed in a following sea... Here, below, she is delivering Marionette safely back to her barn.

Please note that the trailer lights still work!

Some comments on the mast issue. When I built the 'saw' horses for supporting/carrying the mast on the boat, I had a couple of things in mind - clearing the bow pulpit, high enough so that I could use them with the mast as a ridgepole system for a winter cover should the need arise, low enough to clear bridges, and a reasonable height so I could use them as horses for working on the mast for normal maintenance. We had no problems with this system but if these horses were lower the center of gravity would be lower - a good thing, and easier to load. And thinking about all the large dents you see in steel bridge trusses on the highway would no longer fog the mind.

We tied the horses down really well, the legs have 'socks' made from remnant carpeting. On the trip back we talked about maybe a better way - like maybe laying the mast on a simple pad system tied to the deck along side the house, or maybe better to a padded pair of cross 2 x 4s, one across the foredeck in front of the house, the other in front of, or in back of, the transom hatch. This would give us a much lower center of gravity, much easier tie down of the 2 x 4s and the mast, and you could load/unload the mast single handed without hardly even getting on the boat. And it would still be higher than that car that you did not see in the rear view mirrors....

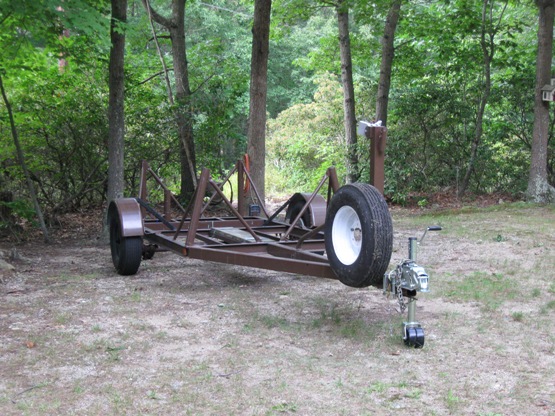

New (in 2010) 1500 lb double wheel tongue jack

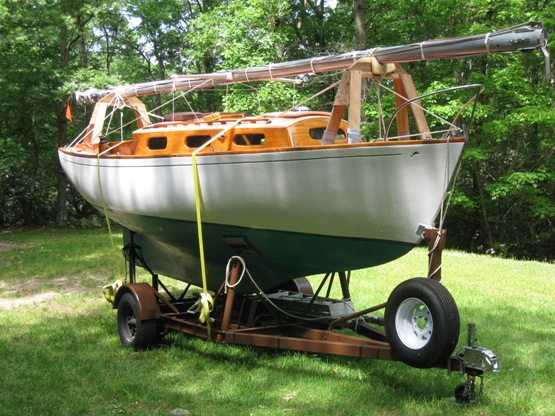

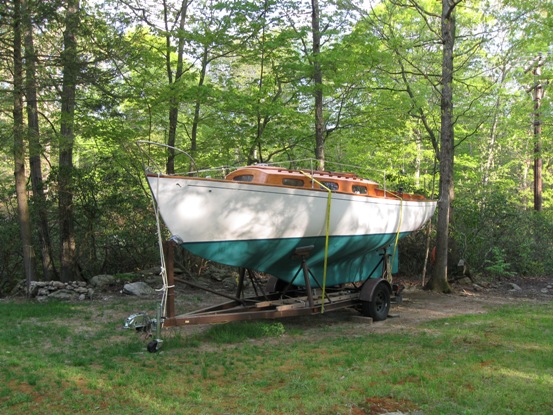

Spring 2009 Ready to go


January 23, 2010 The recent interest in trailers has prompted a review of what additional useful information on Marionette's cradle conversion was available.

A key piece of information is knowing the exact center of gravity formula for the Dolphin 24. Here is the formula provided by S&S: The center of gravity is located at 50.55% of the waterline length measured from the bow. Here is a rough sketch used when we built Marionette's trailer.

The measurement formula placed the center of gravity inline with the center of Marionette's aft portlight, which is also a point 11' from the end of the transom - why I considered this relevant I can't remember. When I bought the boat it was on the cradle positioned with the front poppit lined up with the running light (which is just forward of the main bulkhead), and in line with the winch. The boat had been in this position for nearly 10 years without change and there was no visible hull deflection. There did not seem to be any good reason to change this so the next step was to position the single axle under the cradle to get the desired tongue weight.

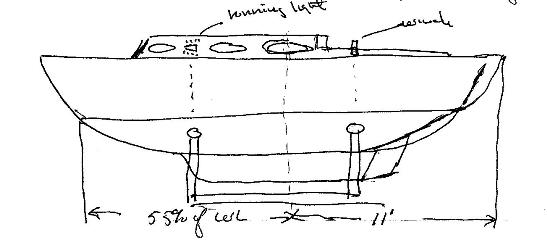

The easiest reference point on the boat was the end of the rudder - I remembered that. The following sketch shows the position of the axle. it also indicates the height of the poppit's and other important dimensions.

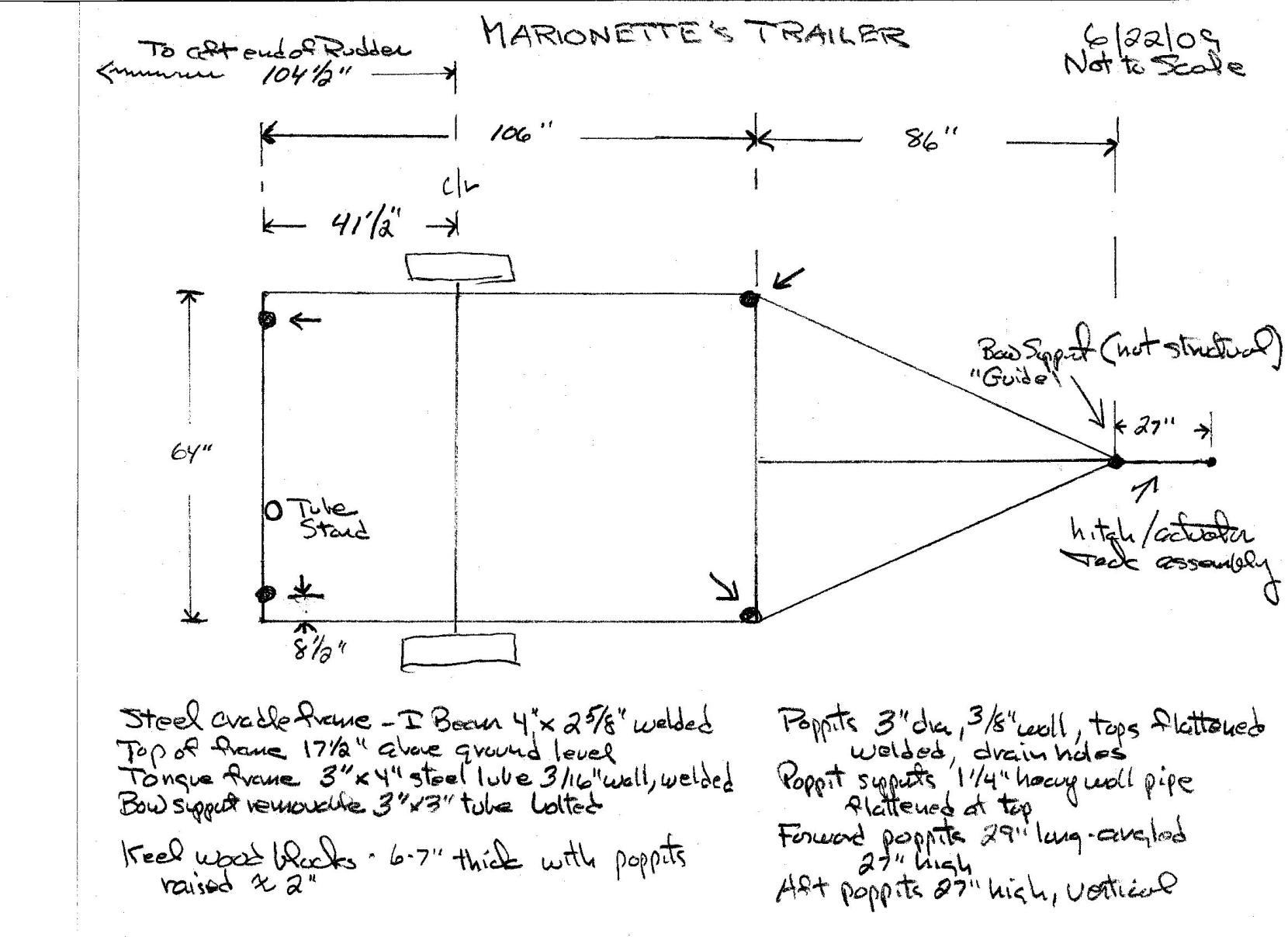

This is a sketch of the key dimensions on Marionette's trailer. By viewing the trailer itself (above) and checking against this sketch you can dimension the trailer. For a larger view of this sketch click here.  Click the back arrow on your browser to get back here.

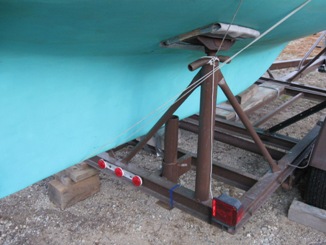

Note that there is a 'tube stand' mounted off center on the rear cross frame. This is to prevent the trailer and boat from tipping back when someone is in the cockpit. It is a large diameter pipe welded to the frame with a smaller diameter pipe inside, and with a few in line holes drilled though both. There is a flat plate welded to the inner pipe. By pulling a pin the inner pipe slides down and the flat plate rests on the ground. By adjusting the jack up forward you can get one set of holes to line up and re-insert the pin to block it. I almost never use it but I like to have it. Usually, I just use wood blocks under the aft end of the keel. Here is a list of the key parts

> Reliable Axle Assembly - SP6000 - 087, drop axle, 5200 lb capacity, hydraulic brakes, leaf springs and hangers

> Dico Hydraulic Brake Actuator and 2" ball hitch

> Dutton - Lainson 800 single wheel tongue jack; later upgraded to 1500 lb double wheel the 800 lb jack seemed 'tired", and I wanted the double wheel for ease of moving the nose of the trailer around on softer ground.

> Tires - Titan SD 225/75, 15", 6 lug, 2500lb capacity.


March 30, 2010 In a recent email a reader, planning to build/rebuild a trailer for a Dolphin he hoped to find and buy, asked an interesting and basic question:

Hi Ron, Excellent website. I'm currently welding up a trailer using the plans on your site. I don't have a Dolphin yet but I'm planning on picking up one of the free ones (or possibly the one on ebay lately). Can you suggest any improvements to make to your trailer or are you happy with it as is? So far, the only change I'm making is to have 2 axles. Any input appreciated.Thx.Andy

My answer:

I have a 'short' tongue because I needed to get the boat/trailer into a barn without much room. It works but you have to watch for sharp turns, and I think a longer tongue might tow better. I am happier with a 1500lb capacity tongue jack. I am on my 3rd full/partial set of trailer lights in 12-13 years? Generally, I launch and retrieve the boat at a salt water ramp once a year, spring and fall. I always fresh water rinse but....The next time they go out on me due to corrosion I am going to rip off the entire system and replace it with a 'temporary' system - essentially an easily detached (from the trailer frame) 2x4 with the lights fixed to it and wires that clip to the frame. When the trailer goes in the water, the lights and wires come off. For the same reasons I would be careful about electric brakes.


July 23, 2011. Recent developments suggest an update the this page is in order.

Early this year I decided to keep Marionette up in Maine for the summer and fall of 2011, perhaps winter her there and have two consecutive sailing seasons up there. And, instead of sailing up - about 7 days - as I had on 2 previous cruises, I decided to trailer the boat up to Rockland, Maine and launch her there. Its a 300 mile road trip, 250 at turnpike speeds with 6000lbs of boat and single axle trailer pushing you forward.

I had Marionette's trailer serviced and I painted it so she looked good. That trailer had made the trip from Boothbay, Maine home with Marionette 3 years years ago with no problems, but I confess to have more nervousness about long distance trailering than long distance sailing. Here is Marionette ready to go June 15, 2011. For a look at Marionette's Log, Summer, 2011 click here.

Premonition is one reason why I am uncomfortable with long distance trailering. We had a good trip - nearly 300 miles and no problems. Six miles before we got to Rockland there was an incident. An accident up ahead closed Route #1 and we were detoured off on to a side road where we sat for nearly an hour. This was a opportunity to walk back and check the trailer straps and so I did. While doing this I noticed a strange black smudge? on the starboard side of Marionette and went back to the truck to get some towel paper. Then I noticed that the right fender bracket was loose, actually broken. The fender already had a dent in it, (look closely) from a too tight turn I took out of my driveway on my way to get the trailer serviced a couple of weeks earlier.

On closer examination, mostly out of view, I noticed that a piece of the tire tread was missing ...missing?? The piece missing was about the size of my hand. The tire was fully inflated but I could see the nylon? inner bands that encased the tire inside the treads. This must have just happened! Knowing we dodged a bullet (the single axle bullet) we changed the tire with the brand new, never used, spare (15 years old). The tires on the trailer probably did not have 1000 miles on them - but they too were 15 years old. In the heat of the moment I forgot to take pictures, and I know this will get me in trouble with the webmaster.

After launching Marionette we took the trailer to a local tire shop in Rockland, bought a new tire and put it on the trailer on the port side, and put that tire on the spare rack. The shop guy told us that the piece that 'flew' out of the tire was probably due to the heat and age deterioration of the tire, not to any road hazard, and certainly not to wear. The unloaded trailer made it back to CT without problems - and is now at my local trailer shop scheduled to get another new tire to replace the 'new' 15 year old never used spare tire, and a complete re-inspection.

Moral of this story - lightly used old tires may look good but are suspect. They are susceptible to sun damage, some times not visible, and apparently just 'old age' deterioration. They may be fine for short trips but the high heat developed at high speeds on long trips are another matter. And, a single axle trailer has no backup if a tire fails....


October 6, 2011. More on tires. After consultations with my trailer guy we decided to get 2 new, matched tires for the trailer and only use the new tire I purchased up in Maine after the 'incident', as a spare. The old tires were consigned to that special place at his shop out back where perfectly good looking but old tires go....

Specs on the new tires: Goodyear Marathons ST 225/75 R15, load range D, 2540 lbs; 65 psi; Radial 5 ply, 2 steel, 2 polyester, 1 nylon, tubeless.

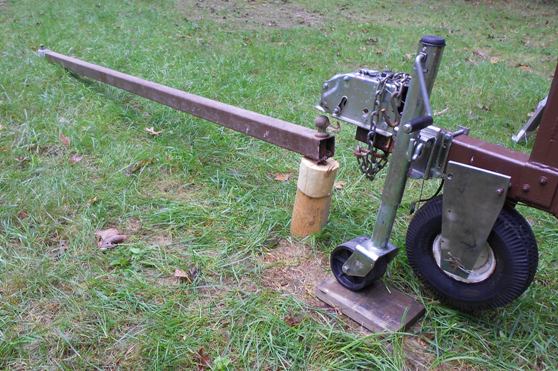

Following up on the subject of my trailer tongue extension (see above) this morning I have finally got around to taking a couple of pictures of the setup. Someday, I'll get a picture on a ramp - hopefully one of me riding the tongue into the water. Actually, I really don't want to do that again....

This is a 'mock up". You'll just have to believe me. This picture taken outside the barn. The boat ramp set up is as follows: the trailer wheels are blocked, the nose wheel installed beneath the tongue and the bolts tightened. The jack wheel is raised to get the hitch off the truck, then lowered to get the weight on the nose wheel, then the jack is tilted back. The 12' extension male end is fitted to the trailer hitch and the female end to the truck. The owner, if necessary, steps up on the tongue, and we back down the ramp.

Here again is the tongue wheel in its 'traveling' position. Really no need to set it up here for travelling - just put it into the bed of the truck. But it always causes interest (your spare?). Two heavy duty shaped plates with 3 holes, two bolts and 2 holes in the trailer tongue (This picture taken before new double wheel jack installed)

The tongue wheel in the 'working position - uses same mounting holes in the tongue. You stand on the top of the tongue over the wheel and hold on to the strut. The additional weight may needed on variable grade or steep, bumpy ramps. The U-bolt is for mounting the real spare if going on a long trip.


January 17, 2013. Your webmaster has not been able to get the Admiral to approve a pickup to tow Marionette so this gets done by a good friend and his truck. We have been 3 times to Maine - 500+/- mile round trip, plus 20+ times up and down local launching ramps and boat yards. Here are the specs.

2002 Chevy Silverado 1/2 ton, with tow package - 6500lb capacity
heavy duty cooling; 5.3 liter Vortek engine
4 wheel drive with limited slip differential

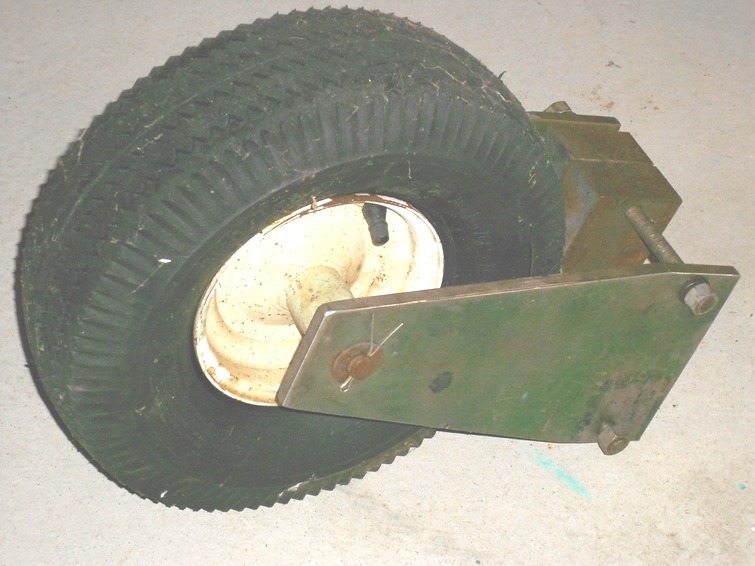

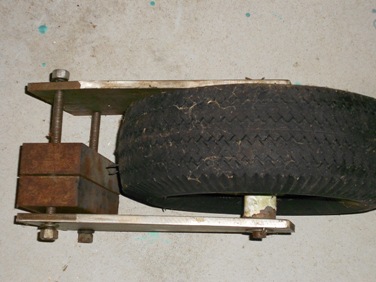

October 11, 2013. A question came in over the transom about the tongue wheel specs (see picture above left). The wheel was bought maybe 12 years ago, is a Carlisle wheel barrel? inflatable tire, steel wheel - about 13" in diameter, 4 1/2 inches thick, - the numbers on the tire say 5.30/4.50, 6 ply rating. The wheel axle diameter is 5/8". The plates used to mount the wheel are 3/8" thick steel. The bolts to fasten it to the trailer tongue are 1/2" dia. The spacer blocks are steel and are used to vertically position the plates on the tongue at a spacing equal to the axel length. The dimensions will vary based on the particular dimensions of the trailer tongue.

The wheel/tire system needs to be able to support the tongue weight of the loaded trailer (800lbs) plus the 200lbs of the guy standing on it (total 1000lbs) - as mentioned above the weight of the guy may be needed to prevent any unexpected upward buckling at the trailer tongue and extension joint when moving down the ramp.

steel spacer bars

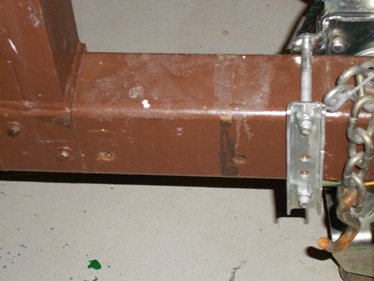

trailer tongue holes for wheel plates

Click the pictures for larger views


March 6, 2016 We have been working on updating Trailers in the Technical section and we needed some better pictures of Marionette's trailer setup - particularly the support system for her 'keel bed". Here they are. Click on the photos for larger images.

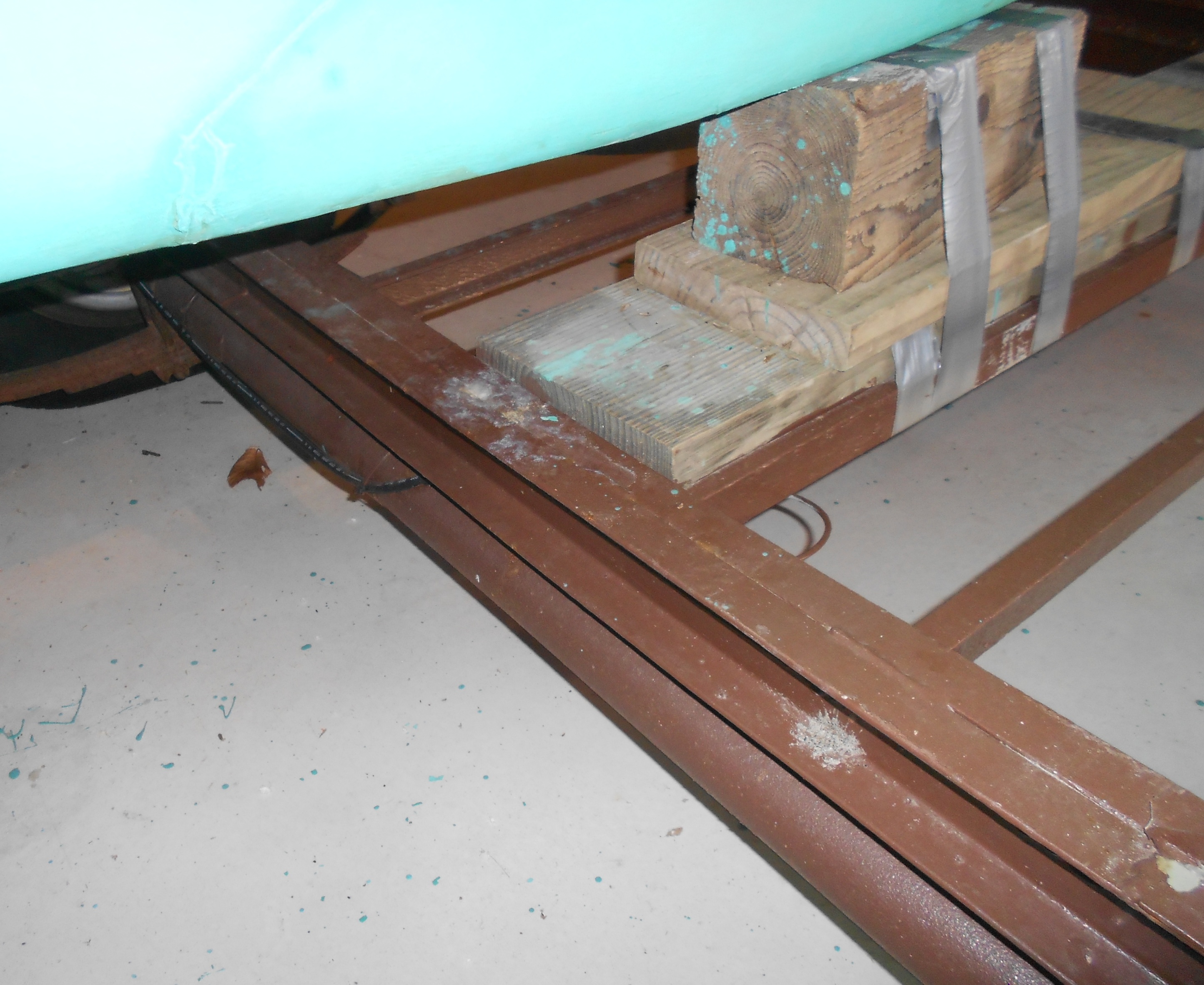

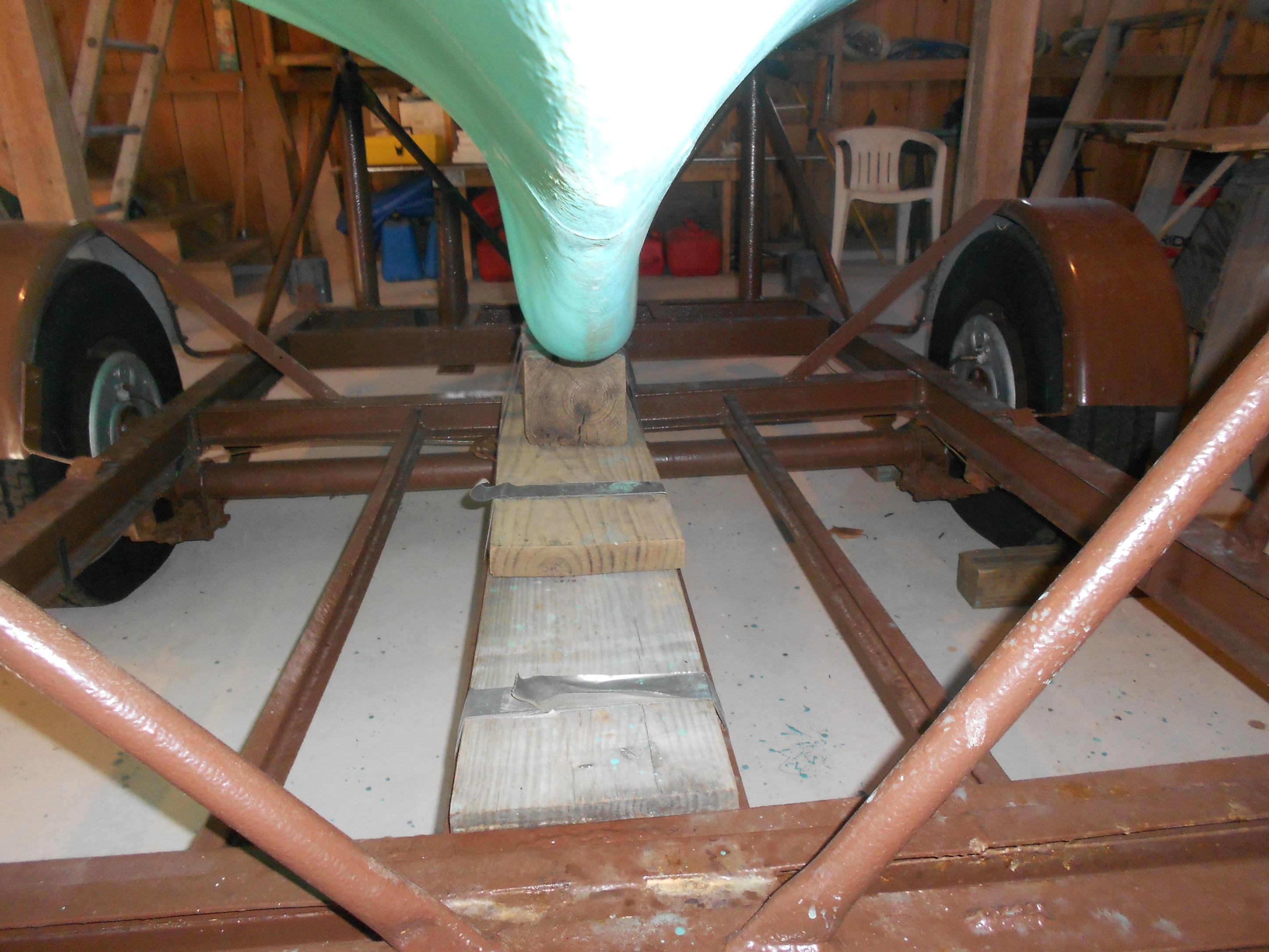

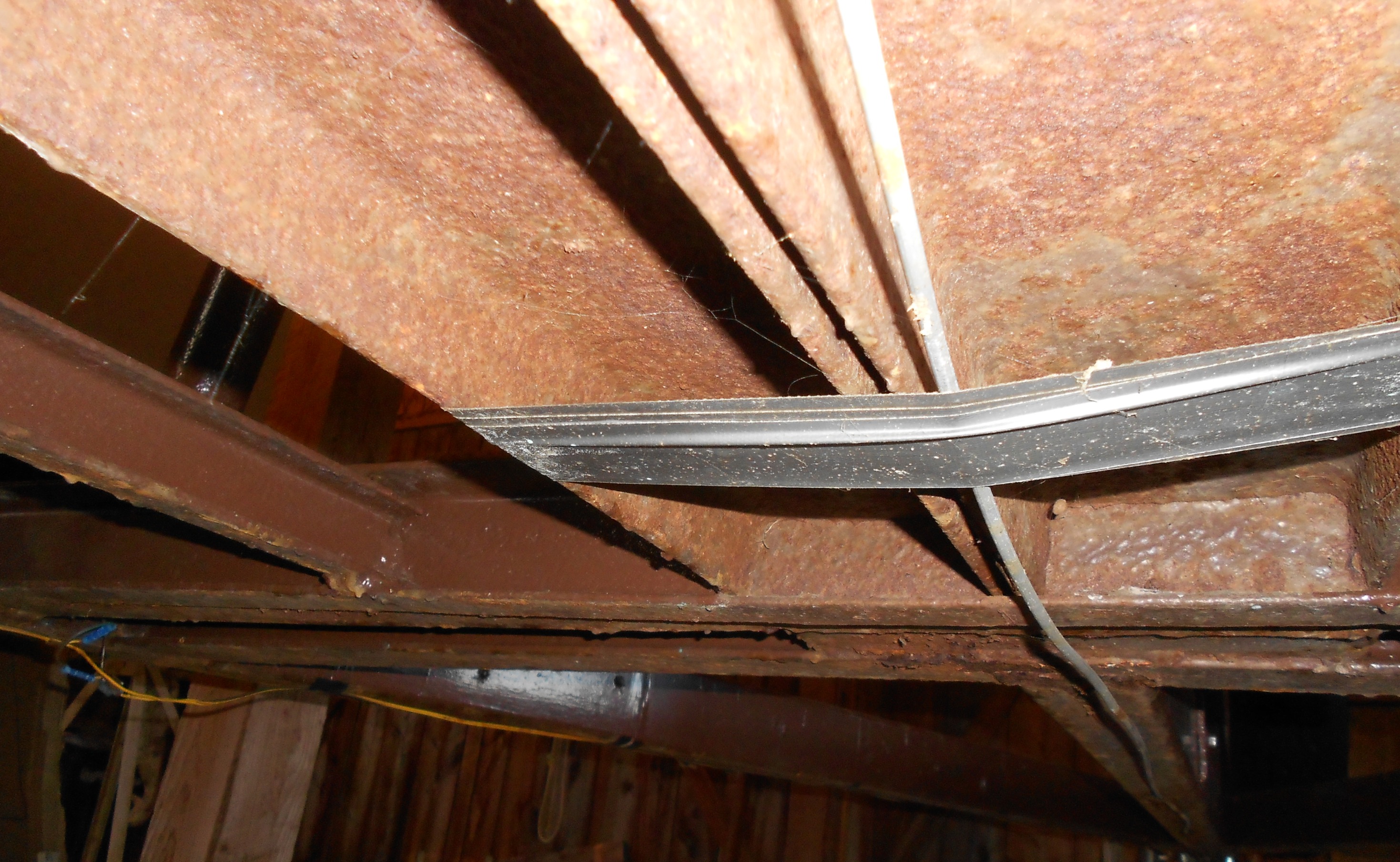

At left is an underneath photo which gives some idea of the structure under the trailer keel bed.

Wish we had a photo before we put the 2x6 board on top of the keel bed support grid - and the boat's keel on top. It will be a couple of months before the trailer is 'free'. .

I measured the 'deflection' of the rear cross member and it was about 1/4 inch at the center

stay tuned

July 12, 2017. A decision was made to trailer Marionette to Maine instead of sailing her there for the Dolphin 24 New England Championships, July 27-29. So a couple of weeks ago we arranged to get her trailer towed to our local trailer shop for her usual pre Maine trip safety check - tires, brakes, electrical, etc. AND, we had noticed some acorns!! and the like at the edges where her tube 'nose' is welded to the poppit frame.....mice had apparantly decided this was a good place to nest....plus there were a couple of rusty spots that did not look good. Back came the report - a sharp hit with the ball side of a peen ball hammer had broken thru the tube at the suspect rust spot - the nose tube had badly rusted from the inside. - a superficially nice brown paint job only added to the false sense of well being. The rest of the trailer frame and poppits was fine. So, a major rebuild of this section was ordered. (update - truth telling time - I have not launched at a ramp in 2-3 years - its work, and this rust issue in the hollow nose section has been in the back of my mind. I would launch at a ramp given no other choice. I use it these days for road transport and storage, and I get the trailer inspected every year! Its over 20 years old and the frame is at least 40 years old......)

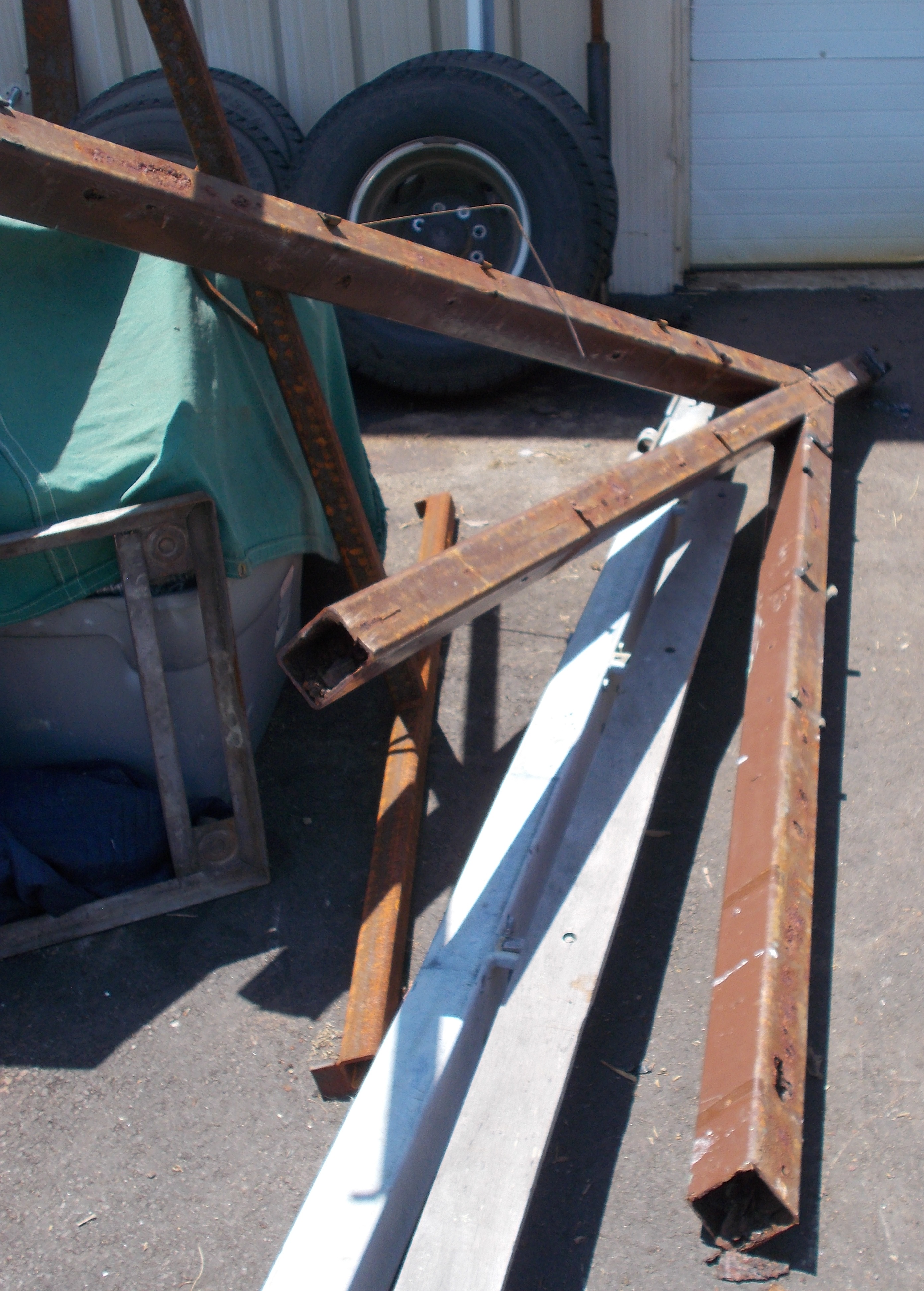

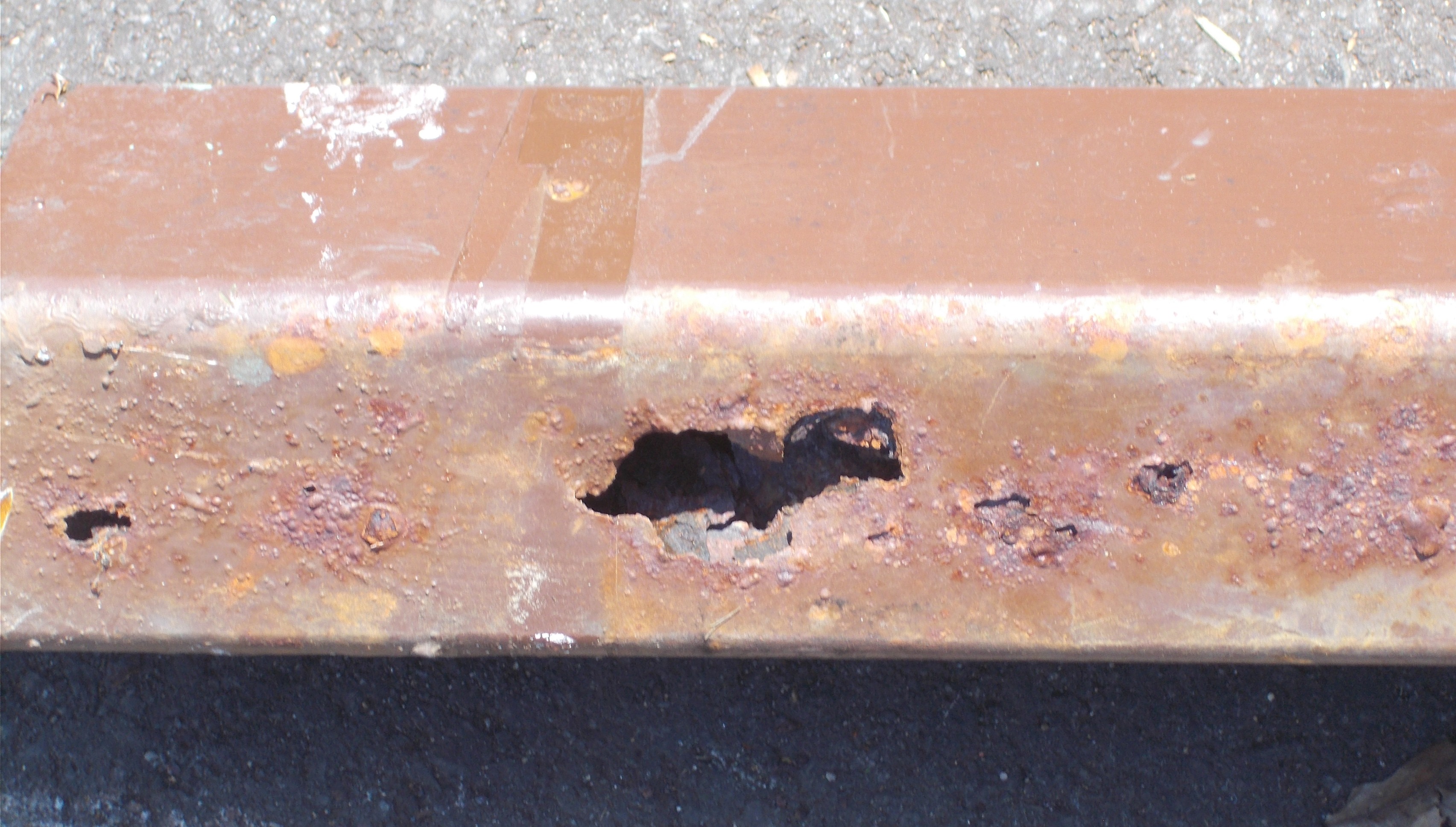

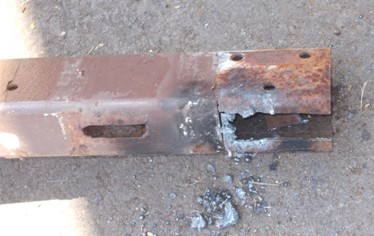

Tubular frames rust from the inside......Click here for a larger image

Based on advice from people who know this stuff decision was made to make the new neck using "C Channel" steel for the outer pieces and a steel tube for the center piece. Pictures continue to be worth 1000+ words so here is a close up of the old tube section.

look underneath.....click the photos for larger image

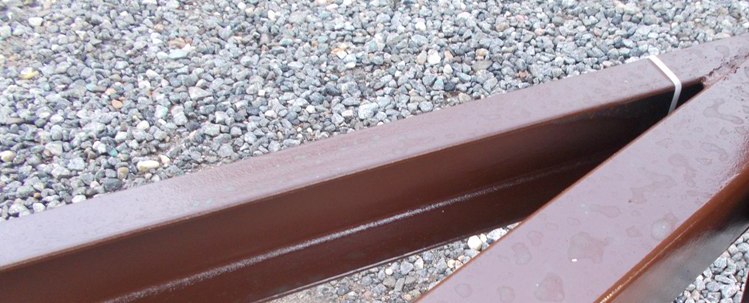

Here's a picture of the "C Channel" section replacing the tubular section

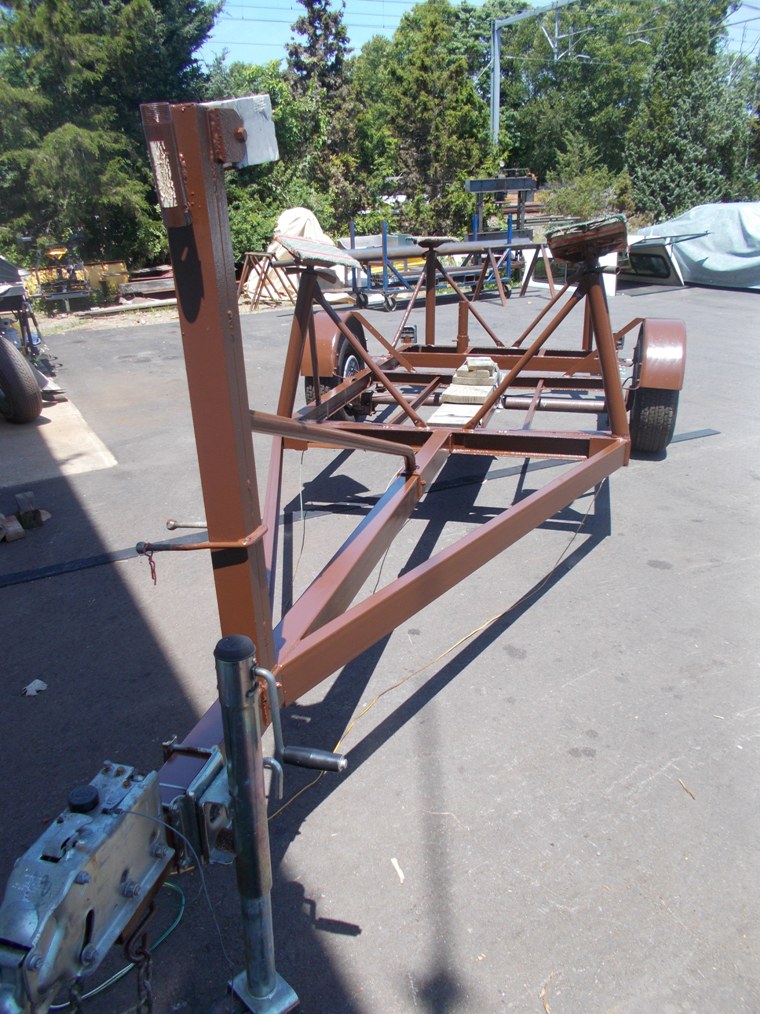

And here she is all re-assembled/welded, painted pretty and ready for road trials

So far so good - 5 miles on back roads is one thing - 300 turnpike miles up to Rockport/Camden another

Stay Tuned

August 5, 2017. No problems on the trip!!

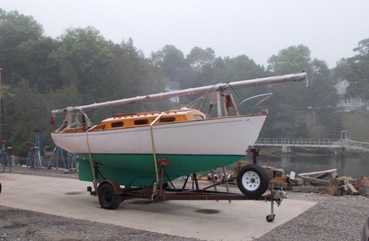

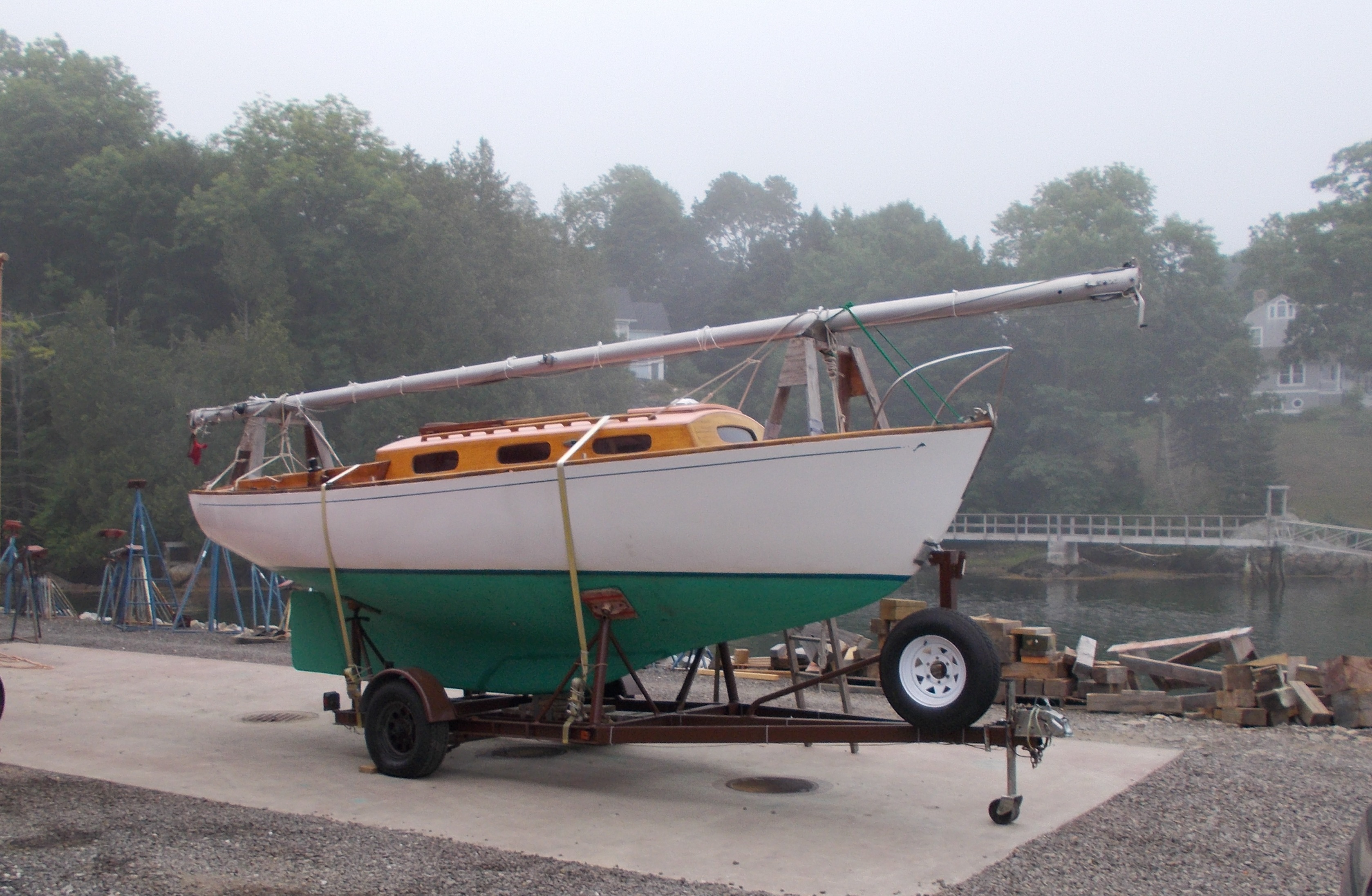

Here she is at Rockport Marine up in Maine - strapped and ready to go on the return trip - Click here for a larger image. And she made it back - no problems.



August 1, 2022 - Its been 5 years since our last trailer report - 5 trips up to Maine and back and it seemed time to have a serious rehab project. We'll start with our trip up to Maine in May 2022 to get Marionette after her long cold winter in Camden

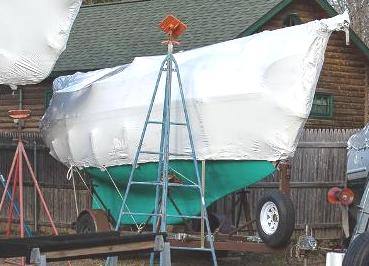

Right - Given 20+ winter years naked in her barn we're not sure how Marionette liked her white coat but such is life.....

On a long weekend, made manageable by several $30+!! lobster rolls, your webmaster and Marionette crew son Mike undressed her and got her ready for her 350 mile road voyage to Cove Landing Marine on Hamburg Cove, Lyme, CT.

Driver Mark arrived May 10th and we left Camden at 11:30 - 'TEER in the pick up truck bed, drove thru Camden, stopped at Taste of Maine for parting lobster rolls, and arrived safely iat Cove Landing Marine, Lyme at 5:30

winter coat


Ready for the road voyage

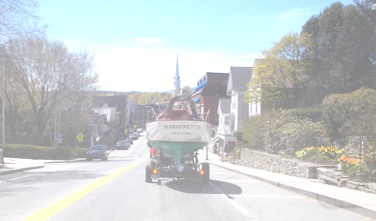

On the road riding thru Camden

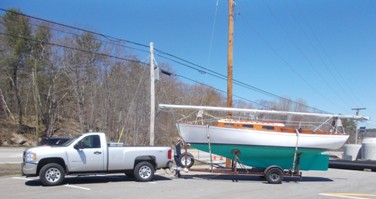

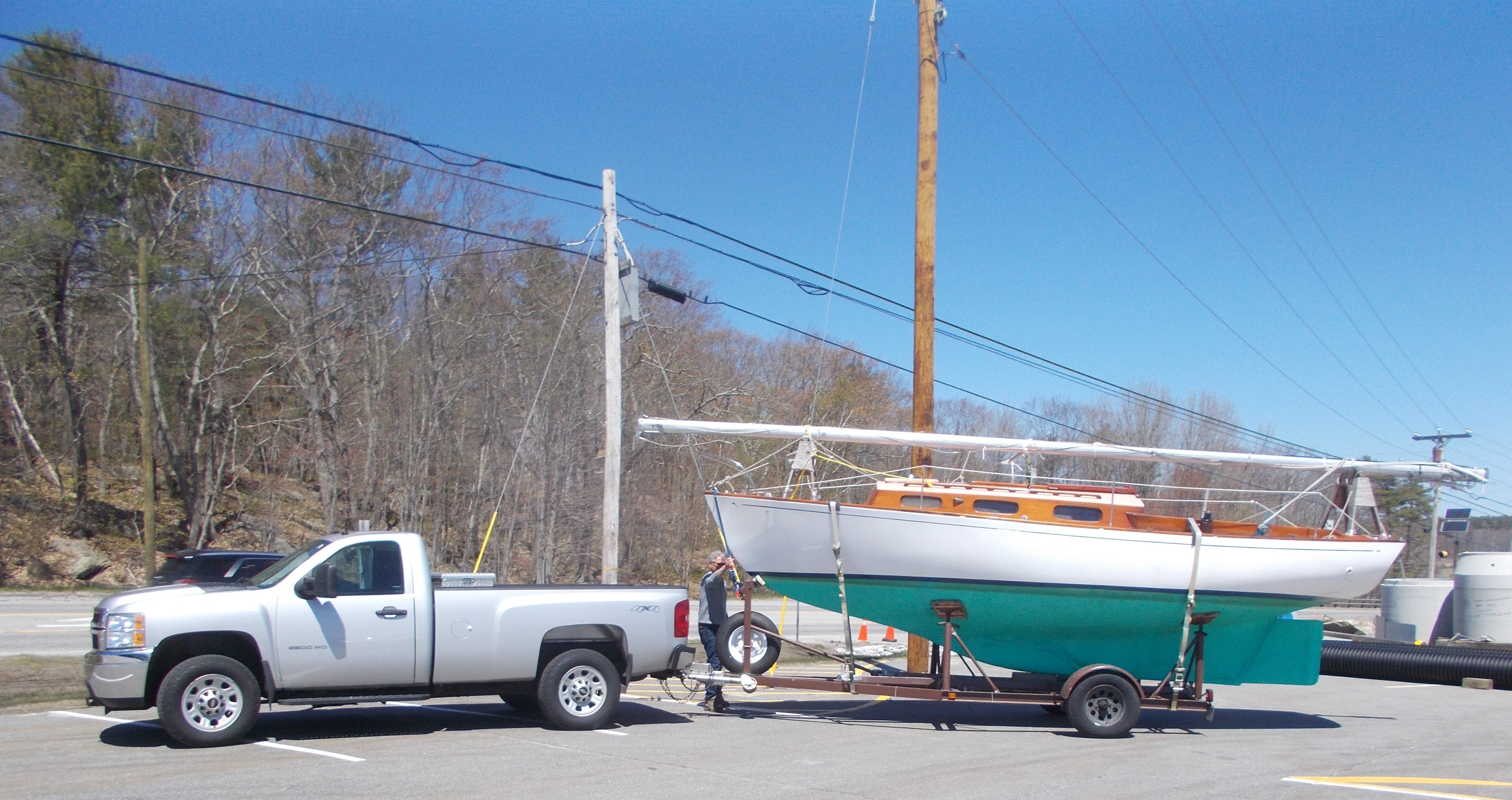

Above - Patiently waiting while crew devour their lunch lobster rolls at the Taste of Maine restaurant, Woolwich, Maine

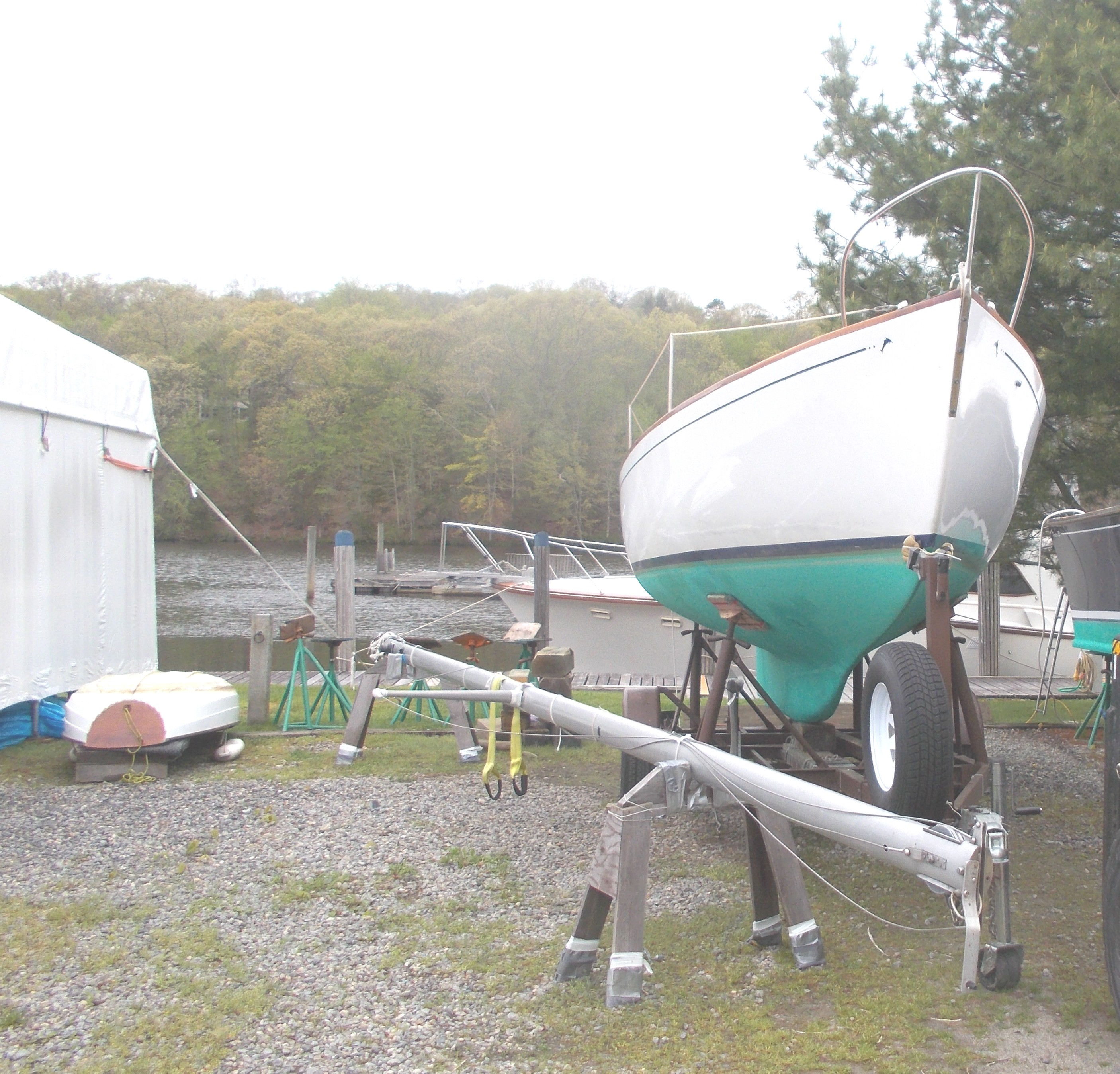

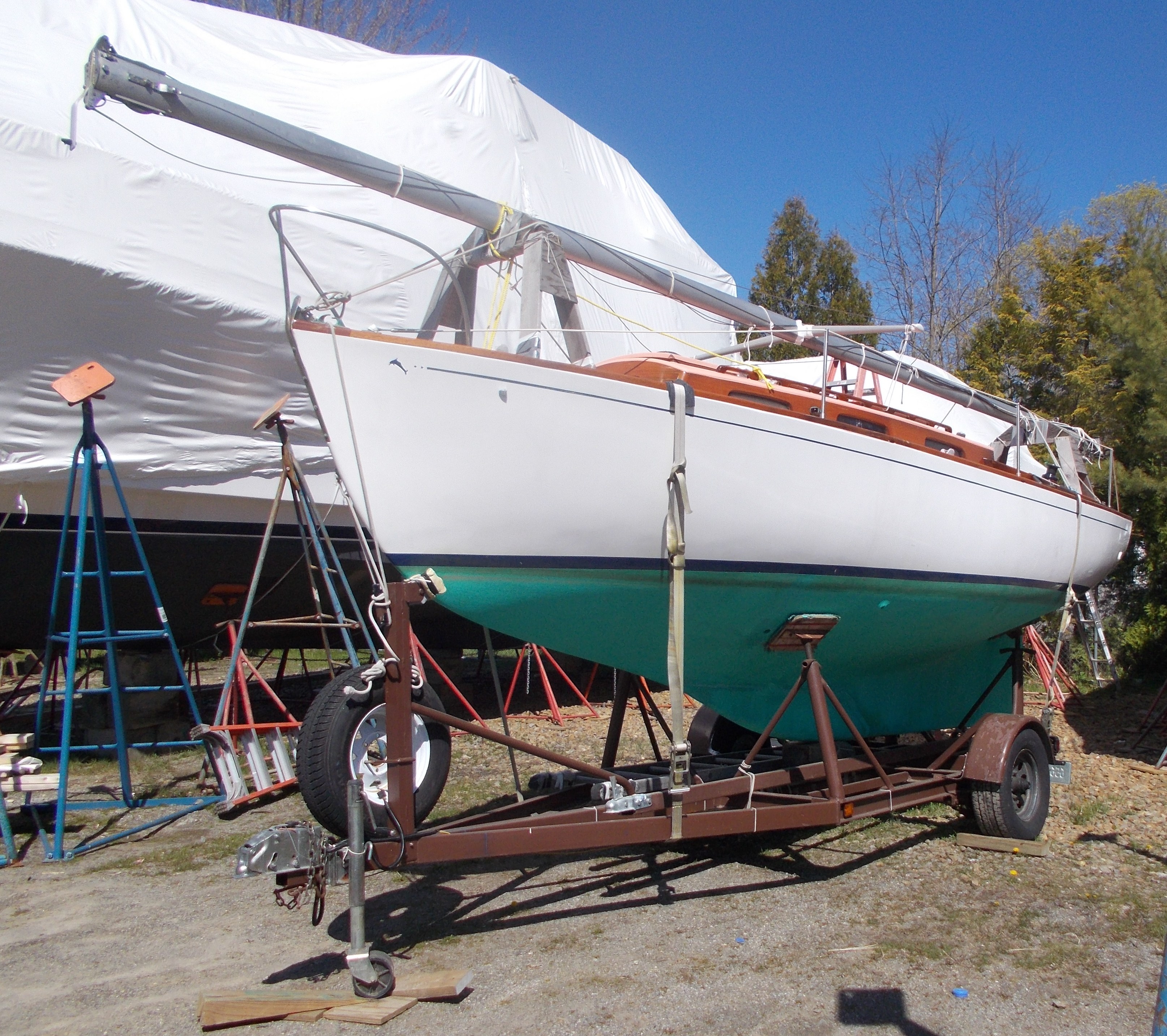

Right - Arrived safe at Cove Landing Marine - ready for wash, bottom sanding, topsides waxing and down below clwanup - stay tuned

Click on the photos for a larger image

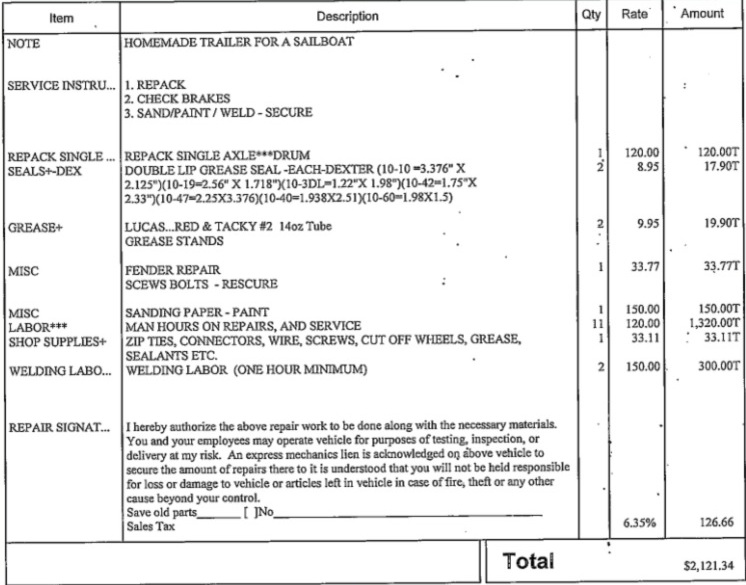

So, time for a serious inspection and do what's necessary to make Marionette's trailer road ready for the future. Our local trailer expert is GH Trailer in Westbrook, Ct http://www.connecticutshorelinetrailers.com/ Here's what happened

Yep - $2121.34!!!

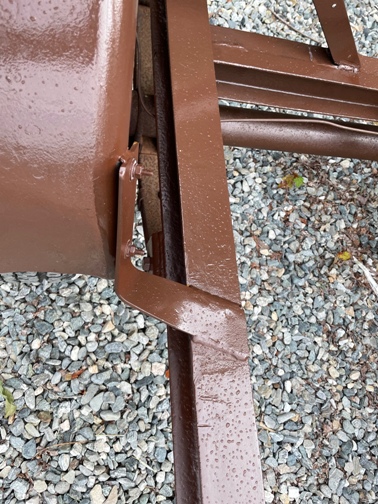

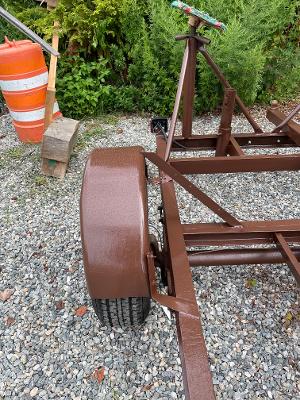

Below just one example - rewelded fender brackets



When I asked what a 'special' trailer like this was worth new he said $6-7,000.
